DESCRIPTION

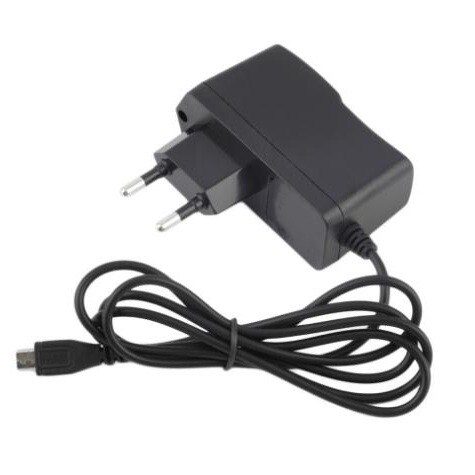

This product is an AC to DC adapter intended for use in payment terminal. This adapter operates at 90 to 264 VAC input voltage. The unit meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application.

FEATURES
‧ Meet IEC 62368-1 & IEC 60950-1
‧ Meet Energy Efficiency DOE Level VI
‧ Meet Code of Conduct Version 5 Tier 2
‧ High Reliability
‧ EMC Standard: EN55032/ EN55024 Class B
‧ Over Current Protection
‧ Over Temperature Protection
‧ Over Voltage Protection

INPUT SPECIFICATIONS
Input voltage: 90-264 VAC
Input frequency: 47-63 Hz
Input current: ≦ 1.0A
AC inlet: EU Plug
No load power consumption: ≦ 0.075W

OUTPUT SPECIFICATIONS
Output voltage/current: 5V1A
Total output power: 5W
Protection: Over voltage/ Short circuit / Over current/ Over temperature
DC Connector: Micro USB（Customizable）
Efficiency Level: VI

SAFETYSTANDARDAPPROVAL


APPLICATIONS
IPCSystems,EmbeddedSystems,Printers,Monitors,POSSystems,AIO,NB,PCSystems,Mini-ITXSystems
