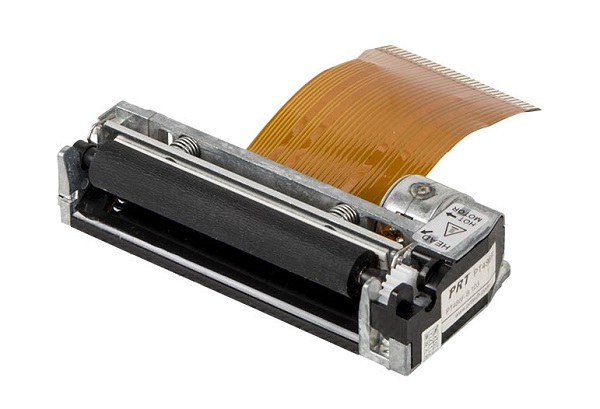

DESCRIPTION
1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-9.5V, so four to six NI-Cd batteries or Ni-MH batteries can also be used. Two li-ion batteries can be used.
2. Compact and lightweight design
The mechanism is compact and light, dimensions: 70.1mm (width) * 21.8mm (depth) * 31.0mm (height)
3. Printing with high resolution
A high-density printer head of 8 dots/mm makes the good printing quality
4. High speed printing
According to driving power and sensitivity of thermal paper, set different printing speed required. Printing speed is 90 mm/ s (max.)
5. Easy paper loading
Detachable rubber roller structure makess the paper loading easier
6. Low noise
Thermal line dot printing is used to guarantee low noise printing.

SPECIFICATION
Print Method: Direct line thermal
Resolution: 8 dots/mm
Max. Printing Width: 48mm
Number of Dots: 384
Paper Width: 57.5±0.5mm
Max. Printing Speed: 90mm/s
Paper Path: Curved

POWER SUPPLY
TPH Logic Voltage
2.7V-5.5V
Drive Voltage
4.2V - 9.5V
PEAK CURRENT

Dimensions(W*D*H): 70.1*21.8*31.0mm
Mass: 43g

APPLICATION
Automotive VDR, Cash registers, EFT POS terminals, Gas pumps, Portable terminals, Measuring devices, Medical equipment, Taxi meters, Weighing scales
